Maximum Controls Max Strong Arm actuator gate operator

MSRP: ARM ONLY - $999.00

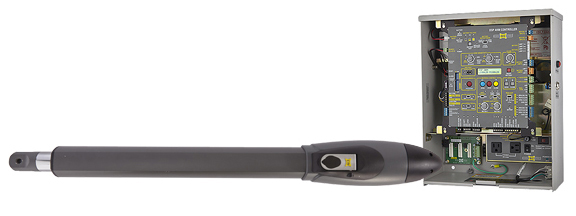

MSRP: PRIMARY PACKAGE - INCLUDES MAX AC CONTROL BOX - $3,400.00

Maximum Controls Max Strong Arm and Max AC Control Box

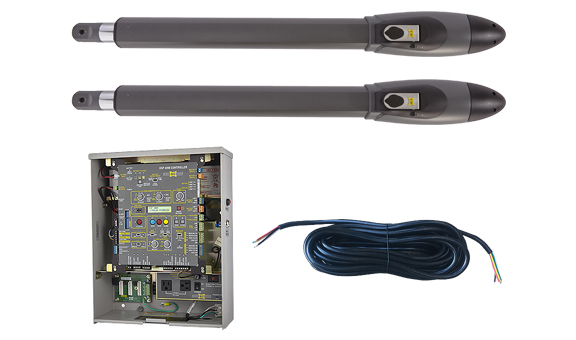

MSRP: DUAL PACKAGE - INCLUDES MAX AC CONTROL BOX & MAX 40' CABLE - $4,400.00

NOW SHIPPING

MAX ARM

HEAVY DUTY LINEAR ACTUATOR FOR RESIDENTIAL/ COMMERCIAL USE

DSP motion control for smooth operation, plus, separate closing speeds for dual gate installations.

The Max Arm is a long throw linear actuator that will move up to 1000 lbs gates. The smooth motion control and separate closing speeds for dual gate installations truly sets this machine apart from it’s competition. The 15 gauge gold zinc, powder coated metal control box with standard loop rack and toroid power supply protects the many user friendly features of the DSP Arm Controller board. A window display for instant diagnostics, opening and closing emergency reversal controls, and easy logical control of gate motion and safety parameters are just a few aspects of many that makes Maximum Controls’ residential/commercial linear actuator a gate operator you should consider.

This area is here to create space. This area is here to create space.This area is here to create space.This area is here to create space.This area is here to create space.

Specifications Download

Installation Manual Actuator

DSP Arm Controller Control BoxSettings Overview / Printable Poster

Commonly Used Actuator
Safety Sensors

Tech Docs

Max Arm Mechanical Specifications

Gate opening capacity: 1600 lbs/8ft; 1200 lbs/12ft; 800 lbs/16ft; 600 lbs/18ft
Shipping weight of Actuator: Max Arm (27 lbs)
Shipping weight of AC Control Box (38 lbs)

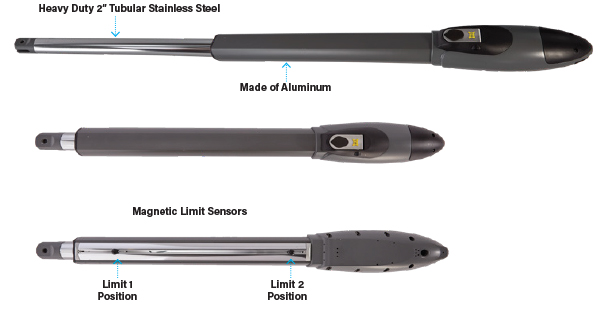

Stainless steel output shaft
Direct gear drive (no internal chains, belts, or pulleys)
Mechanical and electrical gate release functions
Corrosion protection: powder coated aluminum housing
High cycles at extreme temperature ranges. No overheating
Intelligent ramp-up and ramp-down for smooth gate operation

Max Arm Electrical Specifications

Specifications listed in blue are unique to to Max Arm

24 Volt DC motor
Two independently adjustable closing speed controls with 16 positions each
Switchable 115/230 voltage selection
Adaptive DSP motor control for advanced motion control
Real time performance analyzer and event log (OBD PORT and Black Box)
Magic Box enables low voltage wiring capabilities for remote power up to 1000 ft
On-board switch for solar mode enables 18 milliamp idle in sleep mode
Gold contact input connections and automobile grade connectors
-4F to 165F (-20C to +74C) operational range including battery backup without a heater
Robust lightning protection, up to 20KVolts and 10KAmps on all inputs and outputs (35 channels) including loop detector input connections
Two selectable 16 position safety obstruction sensors, auto adaptable to gate weight and size, for independent control of open and close cycles
Independent closing speeds for primary and secondary
Dual motor overcurrent safety shut off for additional protection
Two 7amp hour batteries provides 500 cycles in case of power failure with three modes of battery backup, open once, leave open or leave closed
On-board three button station
On-board UL reset button

Max Arm Security Specifications

High traffic intuitive loop management system for exceptional security
Advanced security features with built-in audible and remote alarms
Magnetic lock control relay outputs with selectable delay times
Tamper alert relay output triggers “on” if gate is forced open
Audible alarm if gate is tampered with or ERD is triggered for heightened security
Steel cover with lock protects against intruders and vandalism
Gate disable feature disables all inputs with exception of the fire department and Max Open input for increased security
Built in transaction buffer
Gate status outputs for gate monitoring
Key activated jog fuction for emergency OPEN/CLOSE function
Advanced anti-tailgate feature prevents unwanted intrusion

Max Arm Safety Specifications

UL 325/991 compliant Class I, II, III, and IV. CSA approved
Built in advanced entrapment protection and alarm output
Built in gate-in-motion alarm for industrial applications

The AC Control Box features rugged metal construction that is gold zinc plated and powder coated. Each AC Control Box comes with an exterior UL reset button, a convenient jog key switch for emergency access or egress, a 10 amp power supply with two 115 VAC accessory outlets, two 7 amp hour batteries conveniently located behind the control panel, a loop rack and much more. A lockable steel cover finishes off this handsome design.

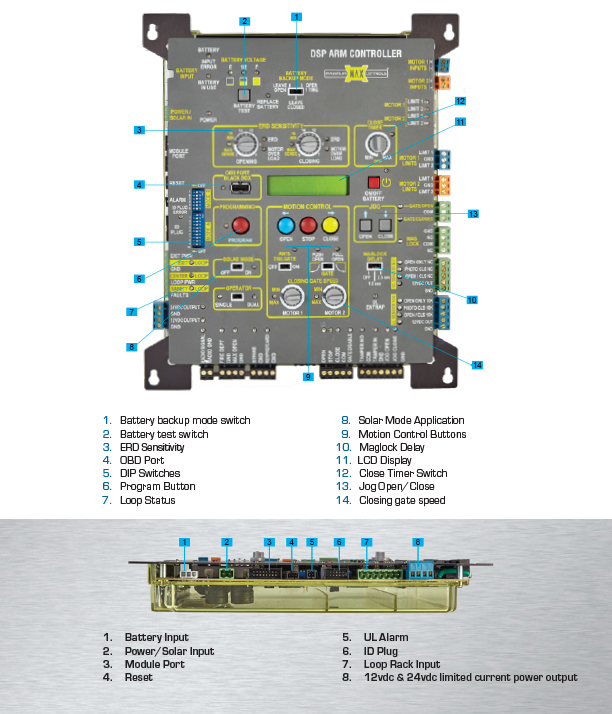

A convenient LCD display keeps you informed. Functional data and error messages are visible when an accessory failure or function is present. This makes troubleshooting and fuction monitoring a breeze.

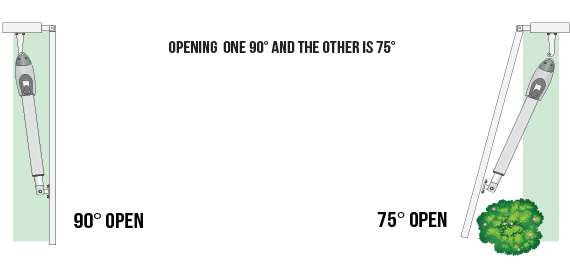

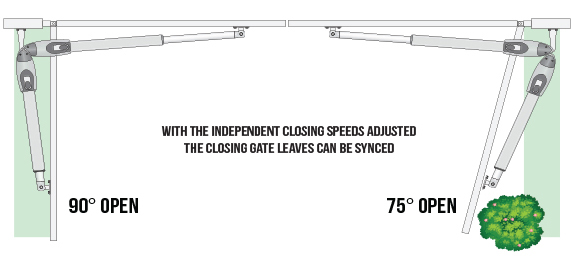

For asymmetric installations the two independent closing speeds can be adjusted to achieve a smooth closing sync. Whichever gate closes first, slow it down. This enables the installer to visually sync the closing cycle. This feature is unique to Maximum Control’s actuators.

The Max Arm offers the most robust lightning protection available in the industry. The Max Arm protects all peripheral inputs, loop inputs, power inputs, relay outputs, and all communication lines (over 35 channels of protection) in 1/1,000,000,000 of a second. With special emphasis on power supply protection, the Max Arm is guaranteed to withstand any lightning hit more than 50 feet away. Truly protected like no other operator in the world.

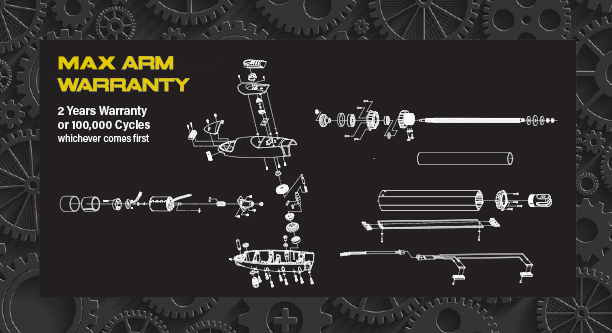

Maximum Controls LLC (“Manufacturer”) warrants the original purchaser of this product, for the purpose to which this product is originally installed, that the product is free from defect in materials and/or workmanship for a period of 2 years or 100,000 cycles whichever comes first, with the exception of the batteries which are limited to a 1 year warranty. The performance of this product is dependent on compliance to the instructions, maintenance, operation, and testing clearly outlined in the user manual. Failure to comply completely with those instructions will void this warranty in its entirety. This warranty does not cover damage to the product caused by vandalism, water damage, direct hit lightning strike, or installation errors. This warranty does not include any labor charges that might be needed to troubleshoot, replace, or repair a problem. If, during the limited warranty period, one of the components exhibits a defect in material and/or workmanship, please call 949-699-0220 before dismantling the product. Shipping instructions and an RMA (Return Material Authorization) number will be issued by the factory service center when contacted. Do not send any product in for service without an RMA number. Shipping charges to the factory service center for warranty repairs are the responsibility of the customer. Return standard ground shipping to the customer will be paid for by the Manufacturer for a period of 12 months or 100,000 cycles whichever comes first. For the remainder of the warranty the customer will pay for shipping to and from the factory service center for repair or replacement of any warranty items. These repairs or replacements are made at the sole discretion of the Manufacturer.

ALL IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OF MERCHANTIBILITY AND SUITABLILITY FOR A PARTICULAR PURPOSE, ARE LIMITED TO 2 YEARS OR 100,000 CYCLES WHICHEVER COMES FIRST. WITH THE EXCEPTION TO THE BATTERIES WHICH ARE 1 YEAR. NO IMPLIED WARRANTIES WILL EXTEND BEYOND THE WARRANTIES LISTED ABOVE.

Some states do not allow limitations on how long an implied warranty lasts so this limitation might not apply to you. This limited warranty does not cover any problems with or relating to the gate, the gate hardware; including but not limited to hinges, rollers, brackets, entry devices etc. Any service call that determines the cause of a problem to be external to the product could result in a fee. Under no circumstances shall the Manufacturer be liable for consequential, incidental or special damages arising in connection with the use, or inability to use this product. Under no circumstances will the Manufacturer’s liability for breach of warranty, breach of contract, negligence or strict liability exceed the cost of the product covered herein. No person is authorized to assume for the Manufacturer any other liability in connection with the sale of this product.
